Pre-made bag packaging machine

Among food packaging machines, the most popular one among small entrepreneurs is the sauce packaging machine, and sauce products such as ketchup, salad sauce, chili sauce, chocolate sauce, etc. have become one of the condiments that we cannot do without in our daily lives, thus promoting the production of sauce packaging machines. In order to ensure the quality and production efficiency of the sauce, more and more small businesses choose to use horizontal pre-made bag sauce packaging machines for automatic packaging. This equipment can not only improve production efficiency, but also ensure the accuracy of packaging weight. Then, I will introduce you to the relevant knowledge of horizontal pre-made bag sauce packaging machines, hoping to help you better understand this equipment.

1. What is a horizontal pre-made bag sauce packaging machine?

The horizontal pre-made bag sauce packaging machine is to package and pack the bags of pre-made bag packaging materials and liquid sauce products. This packaging machine can automatically perform filling, sealing, cutting, printing, etc. Compared with traditional vertical packaging machines, horizontal packaging machines are more suitable for packaging liquid and sauce products. Pre-made bags are usually made in advance by the manufacturer according to the product information and needs, and placed in the bag storage room of the packaging machine. The packaging machine automatically fills the liquid sauce into the bag for continuous and repeated packaging.

2. How does the horizontal pre-made bag sauce packaging machine work?

The working principle of the horizontal pre-made bag sauce packaging machine is generally divided into the following main steps:

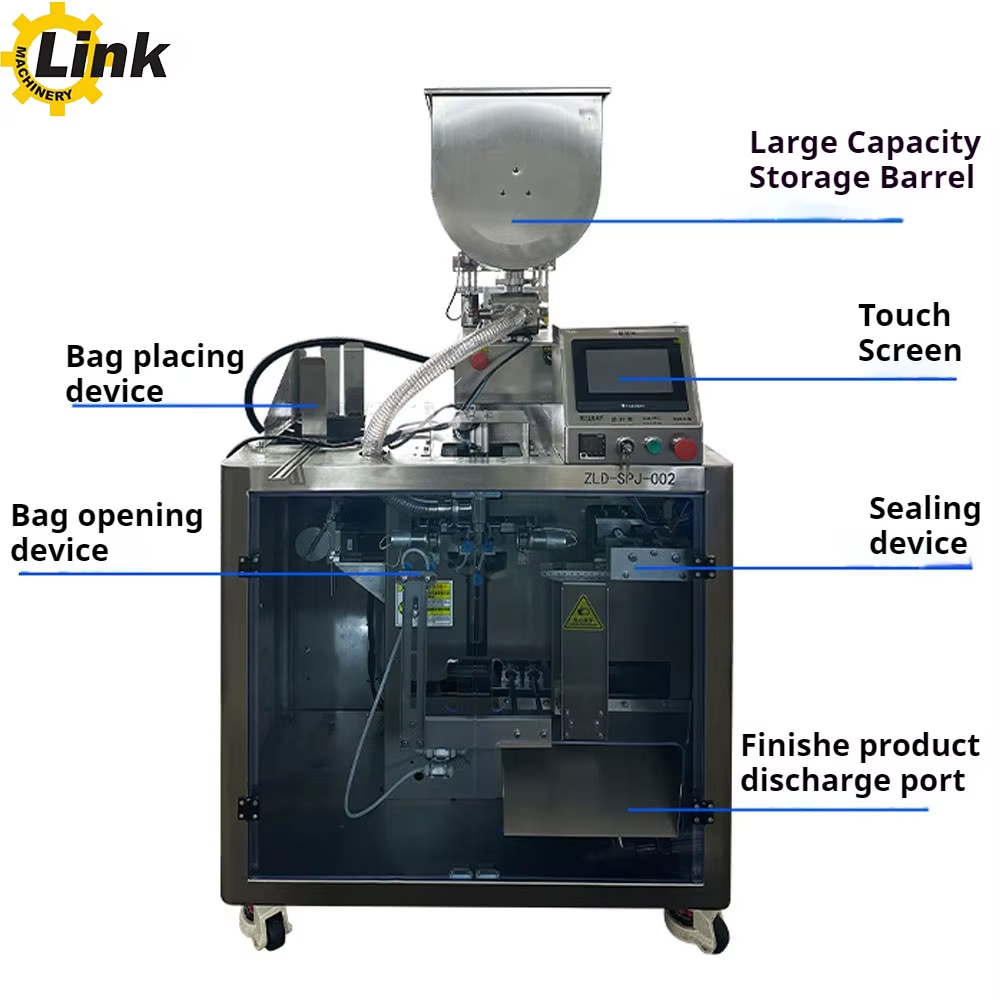

(1) Automatic bag supply system

You can place some packaging machines to automatically take out the packaging bags from the pre-made bag silo and send the bags to the working position of the packaging machine through the conveying system. Pre-made bags are usually made of composite film or plastic materials and are made into individual plastic bags in advance.

(2) Pre-made bag opening and positioning

After the machine is started, the bag mouth will be opened by the robot to ensure the accuracy of the bag opening and position, and wait for the material to be unloaded.

(3) Sauce filling system

The packaging machine uses a precision metering pump for filling, which can ensure the accurate gram weight of each bag of sauce. The filling of liquid sauce is transported to the bag through a pipe, and the metering system will unload the material according to the weight you set.

(4) Sealing system

After filling, the bag mouth is sealed by the aluminum block of the heat seal. The seal fuses the sealing material of the bag through heat and pressure to ensure that the bag is sealed tightly and prevent sauce leakage.

Printing and marking

If necessary, you can choose to equip the packaging machine with a printing device to print information such as production date, batch number, barcode, etc. The printing system generally uses thermal transfer, inkjet or laser technology to ensure that the marking is clear and not easy to fall off.

Cutting and output

After sealing and printing, the packaging machine will cut each bag into independent finished product packaging through a conveyor belt and automatically send the bag out.

III. Main features of horizontal prefabricated bag sauce packaging machine

(1) Efficient automation

The horizontal prefabricated bag sauce packaging machine adopts a fully automated control system, which can independently complete multiple steps such as bag supply, bag opening, filling, sealing, cutting, etc., greatly improving production efficiency and reducing manual intervention.

(2) Accurate filling

This sauce packaging machine is equipped with a high-precision metering system, which can ensure that the weight of the sauce is accurate and correct. Compared with manual packaging, it is more accurate, thus avoiding waste.

(3) High adaptability

The packaging machine can adapt to different types of pre-made bag materials, including plastic bags, composite film bags, aluminum foil bags and other bag materials.

(4) Safer food packaging

The horizontal packaging machine is made of food-grade stainless steel, and the part that comes into direct contact with food is made of food-grade s304 stainless steel, ensuring that the entire packaging process meets hygiene standards. The machine is equipped with a cleaning function. You can turn on the automatic cleaning button when the production is completed.

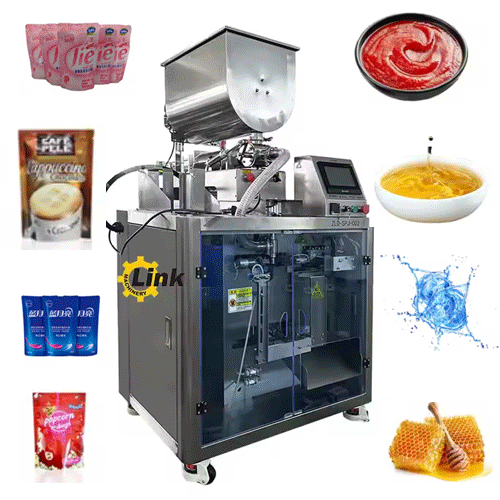

The horizontal pre-made bag packaging machine is not only suitable for packaging various sauces, such as ketchup, salad sauce, chili sauce, barbecue sauce, etc., but also for packaging liquid products such as milk, juice, water, etc. It can also adjust the filling method according to the characteristics of different products to meet your various packaging needs.

IV. Application of horizontal pre-made bag packaging machine

Horizontal pre-made bag sauce packaging machine is widely used in many industries. As long as your packaging needs are for liquid and paste products, this machine can achieve perfect packaging for you.

(1) Food industry: It can package various condiments and liquid products including ketchup, chili sauce, honey, jam, barbecue sauce, water, milk, etc.

(2) Daily chemical industry: It can package liquid daily chemical products such as skin care products, shampoo, shower gel, detergent, cosmetic cream, etc.

(3) Pharmaceutical industry: Packaging of liquid medicines, oral liquids, etc., but usually very few.

(4) Chemical industry: Packaging of paints, lubricants, glue, etc.

As described above, the horizontal pre-made bag sauce packaging machine provides a new packaging solution for the packaging of sauces and liquid products with its super high efficiency, accurate weight and cost saving.
