Fully automatic tea packaging machine

--------------占位---------------

（1）Inner and outer bag tea packaging machine

The tea leaves are transported to the metering device by means of vibrating plate feeding, screw feeding, etc. Vibrating plate feeding is suitable for tea leaves with smaller particles and better fluidity, while screw feeding is more suitable for looser tea leaves. It is divided into inner bag and outer bag packaging. When using this tea packaging machine, you need to pay attention to the outer bag size and inner bag size.

（2）Inner bag bag making and filling

The inner bag packaging material is transported to the designated position, folded and heat-sealed by the heat sealing mechanism to form an inner bag. Then, the measured tea leaves are accurately filled into the inner bag through a funnel or other conveying device.

Outer bag bagging and sealing

After the inner bag is filled, the inner bag is clamped or transported to the outer bag packaging position, and the outer bag packaging material is also folded and heat-sealed here accordingly to wrap the inner bag in it, forming an inner and outer bag integrated packaging structure, and the open end is sealed.

Function

Filling, metering, sealing, filling

Voltage

220 (voltage)

Finished bag size

Inner bag: width 40-80MM, length 60-80MM (mm)

Dimensions

1200*1060*1900 (mm)

Packaging speed

20-80 (bags/min)

Packaging

Packaging film width

140/160/180 (mm)

Applicable industries

Food, chemical, daily chemical, medicine

--------------占位---------------

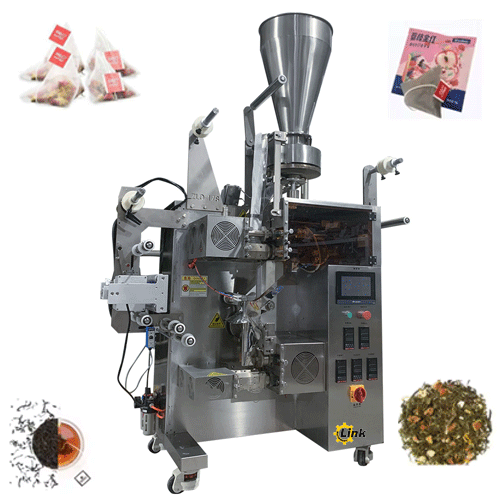

Tea bag label and string packaging equipment

Tea bag label and string packaging equipment is a kind of machinery specially used for producing tea bag packaging with labels and strings. It is usually a fully automatic equipment, which can efficiently and accurately complete the inner bag packaging of tea leaves and attach labels and strings. Generally, it is about 30-60 bags/minute, and the packaging speed of equipment of different models and specifications will vary.







Measuring range: 1-15 grams (other specifications can be customized)

Packing speed: 30-60 bags/min (depending on the material)

Inner bag: width 45-80MM length 50-75MM bag size: length 75-95MM outer bag: width 85-120MM

Sealing method: three-side sealing

Power supply: 220V/50HZ/3.7KW

Machine weight: 500KG

Feeding method: measuring cup measurement

External dimensions: 1800*650*1950mm

--------------占位---------------

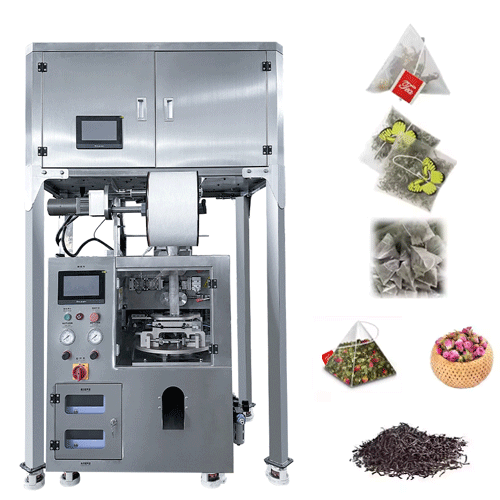

Pyramid Tea Bag Packaging Machine

The pyramid tea bag packaging machine is a kind of equipment specialized in producing pyramid-shaped tea bags. This type of tea bag packaging machine is usually suitable for scented tea, such as dried rose, chrysanthemum, jasmine, cassia seed, etc. Unlike other tea bag packaging machines, it is equipped with a rotary sealing and cutting device to make pyramid-shaped bags.



--------------占位---------------

Features of tea packaging equipment

1. Photoelectric sensors detect position, cutting is accurate and efficient.

2. Bag making, metering, filling, sealing, slitting, counting and other processes are completed automatically.

3. Packaging capacity, inner bag and outer bag size can be adjusted at will according to different requirements.

4. The body and all parts in direct contact with the product are made of SUS304 stainless steel, which meets GMP standards.

5. Automatically complete the whole process of bag making, weighing, filling, sealing, cutting and counting.

6. Optional devices: date coding machine, boxing system, nitrogen generator, shrink packaging machine, etc.

7. Provide customized services

Working process display of inner and outer bag tea packaging machine

Application of tea bag packaging machine

(1) Packaging of various types of tea: It can be used for the bag packaging of traditional teas such as green tea, black tea, oolong tea, white tea, yellow tea, and black tea. The tea leaves are packaged into small bags according to the quantitative quantity, which is convenient for consumers to brew and drink.

(2) Herbal tea and health tea: As people pay more attention to health and health preservation, various herbal teas and health teas are becoming more and more popular, such as rose tea, chrysanthemum tea, wolfberry tea, etc. Tea bag packaging machines can meet the packaging needs of these teas, making them easier to store and carry.

(3) Diversified design of tea bags: In addition to the common square tea bags, special shapes such as pyramid and round tea bags can also be made. For example, pyramid-shaped tea bags can make the tea leaves stretch faster after hot water is injected.

(4) Tea packaging machines are widely used in the packaging of green tea, black tea, oolong tea, white tea, herbal tea, flower tea, lemongrass tea, etc. Independent tea bags are conducive to storing tea leaves and maintaining their own aroma. Convenient to carry and share with others

The above is an overview and introduction of the tea packaging equipment currently on the market. We believe that with the development of the times and the tea industry, packaging machinery will also be constantly updated with the market. Perhaps in the future there will be more and faster and smarter tea packaging machines to bring consumers a different experience. So are there any machines you like among these tea packaging machines? If you want to know more details about the machine, please contact us. We can design and manufacture tea packaging equipment according to your actual requirements. If you are looking for reliable tea packaging machine manufacturers and suppliers, today is a great opportunity to contact us. Looking forward to your message.
