Packaging machine, liquid machine, paste machine

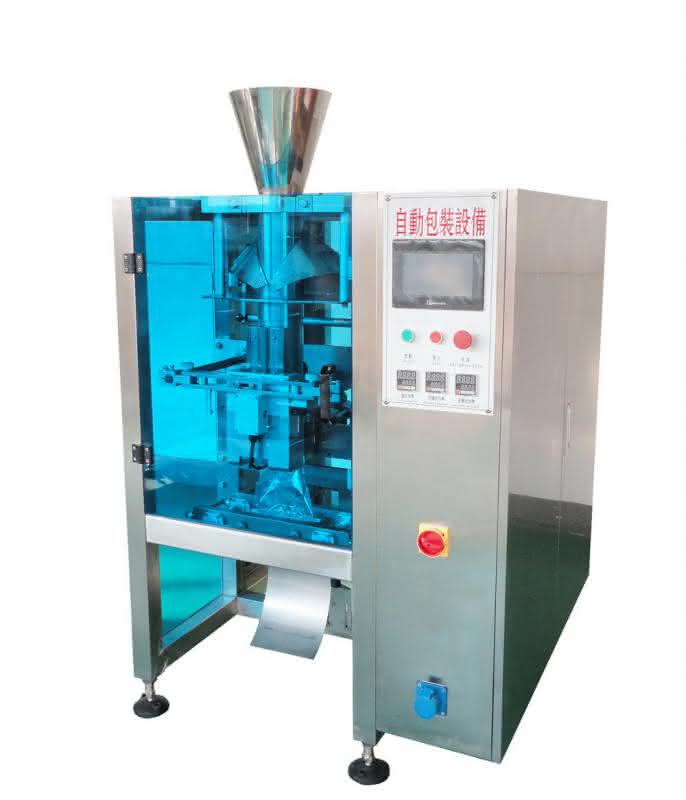

Full automatic liquid / paste products quantitative bag packaging equipment

This machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.

  • Item NO.:

    DX-7
  • Order(MOQ):

    1
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-14days
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical suppo
  • Payment:

    L/C D/A D/P T/T Western Union
  • Product Detail



Main performance and functional characteristics

1.Equipped with safety protection, comply with firm’s safety management requirements.

2.Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.

3.Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center which maximize the whole machine’s control precision ,reliability and intelligentized level.

4.Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing.

5. With error indicating system , which help to handle the trouble immediately.

6. Make pillow bags and hanging bags in terms of customers’ different requirements.



Model

DX-7

DX-8

Measure method

Volume quantitative

Volume quantitative

Making bag size

(L)60-300mm, (W)60-200mm

(L)80-350mm, (W)80-250mm

Filling weight

10-5000g Need change molds

10-5000g Need change molds

Packaging precision

≤1%

Packaging speed

25-60bag /min Depend on the product characteristic

Power supply

Three phase 380/220V 50-60 Hz

6 kw

Pressure

6-8 kg/cm2

0.2m3/min

weight

700kg

950Kg

Dimension (mm)

1300×1500×2600mm




1): Nitrogen filling function

2): Venting device

3): Gusset device

4): Hook the hole cutter seat

5): Date Printer




Product: Nuts (granular products)

Packing bag type: pillow back sealing bags (roll film to make the bags)

Packing weight: 10~1000g

Packing bag size: Film width=260mm, Bag width=120mm, Bag length=210mm

Production capacity: 20~60 bags/min

Measurement accuracy: ±0.1~1g

Compressed air consumption: about 0.8 cubic / minute 0.8-0.9Mpa

Total power: 8.5KW (not including metal detection and self-owned equipment and other factory auxiliary equipment)
