Frozen Food Packaging Machine Guide

In the frozen food industry, packaging is not only the key to locking in the freshness of the product, but also the first line of defense against temperature fluctuations during transportation and storage. From frozen dumplings, seafood to pre-prepared dishes, a professional Frozen Food Packaging Machine* can significantly reduce the loss rate while enhancing the brand image. But for companies, faced with a wide variety of equipment and processes, how can they find the most suitable solution? This article will disassemble the core points of frozen food packaging for you to help you make efficient decisions.

Why does frozen food packaging require special equipment?

Frozen food faces three major challenges in the packaging process:

(1) Temperature control: The packaging environment must be maintained at a low temperature (usually ≤-18℃) to prevent the product from thawing, deforming, or breeding bacteria.

(2) Anti-condensation design: Alternating hot and cold can easily cause frost in the packaging bag, and the equipment needs to be quickly sealed and prevent water vapor penetration.

(3) Material cold resistance: Ordinary packaging films are prone to brittle cracks at low temperatures, and frozen food packaging must use low-temperature resistant materials such as PE/PA composite materials.

Tips: When choosing a frozen food packaging machine, be sure to confirm that it is suitable for working conditions below -30℃ and has an antifreeze lubrication system.

Mainstream frozen food packaging machine types and applicable scenarios

According to product form and packaging requirements, the following models can be matched:

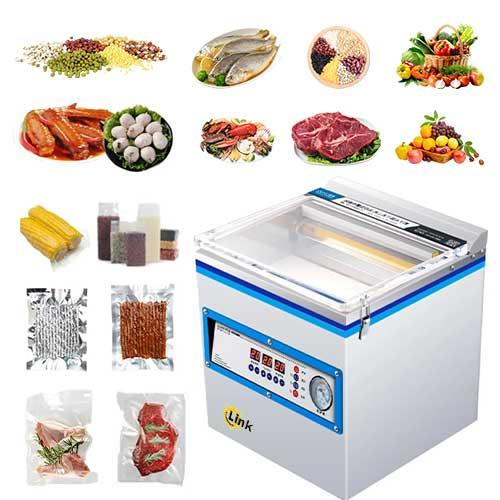

(1) Vacuum packaging machine

Applicable products: steak, seafood, marinated products and other categories that need to be isolated from oxygen.

Advantages: Heat sealing after vacuuming, extending the shelf life to 12~18 months, reducing Freezer Burn) phenomenon. The use of vacuum food packaging machines can extend the shelf life of food and protect your food safety.小叶

Production capacity: Semi-automatic models are about 8~15 packs/minute, and fully automatic production lines can reach 60 packs/minute.

(2) Vertical packaging machine with nitrogen flushing

Applicable products: salads, ready-to-eat meals and other categories with high color requirements.

Technical core: Injecting nitrogen and carbon dioxide mixed gas to inhibit microbial activity and maintain food freshness.

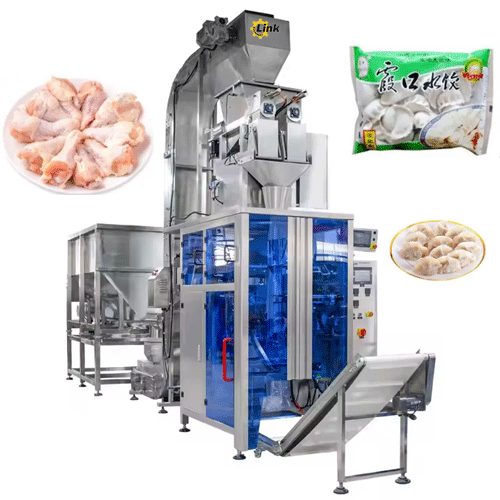

(3) Vertical automatic packaging machine (VFFS)

Applicable products: quick-frozen vegetables, French fries and other granular or block products.

Process: automatic bag making → quantitative filling → vacuuming (optional) → heat sealing, supporting back sealing, four-side sealing and other bag types.

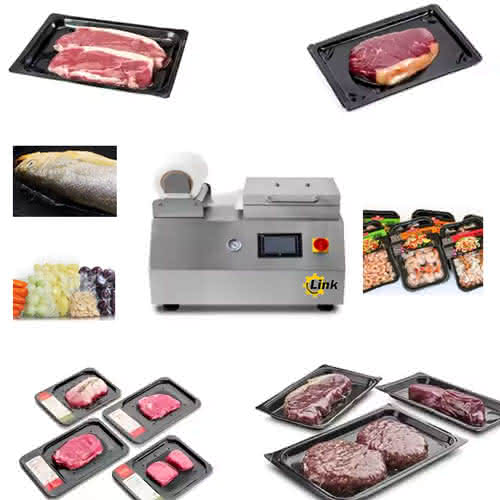

Tray sealing machine

Applicable products: frozen pre-prepared dishes, ice cream and other high-end categories that need to show the appearance.

Highlights: can be matched with transparent film to achieve "visible packaging" to attract consumers' attention.

Five key indicators for purchasing frozen food packaging machinery

(1) Temperature adaptability

Confirm that core components such as motors and sensors can operate stably in low temperature environments. Some models require customized antifreeze coatings.

(2) Sealing strength

Frozen foods are prone to cracking due to vibration during transportation. It is recommended to choose double-pass heat sealing or pulse sealing technology.

(3) Automation level

Small batch production: semi-automatic models, such as manual feeding + automatic sealing

Scale demand: fully automatic lines can integrate weighing, X-ray detection and other functions to reduce manual intervention.

Combined with the feeder and product conveyor belt, it forms a complete packaging machine production line.

Hygiene standards

The equipment material must comply with FDA/CE certification. A fully stainless steel body is recommended to avoid grease residue and rust.

3 tips on how to choose a frozen food packaging machine manufacturer

(1) Verify industry experience

Give priority to frozen food packaging machine manufacturers that have served meat and aquatic companies, and require them to provide case videos of similar products. LINK Factory has nearly 30 years of experience in food packaging and is ready to provide you with professional customized services at any time.

Test actual production capacity

To test the theoretical speed of the packaging machine and the actual packaging speed, you can be sure to take the sample to the factory for a test run.

Perfect after-sales service

Confirm that the packaging machine supplier provides:

(1) 24-hour remote fault diagnosis and local inventory support for vulnerable parts (such as heating strips, vacuum pumps)

(2) At least 1 free equipment maintenance per year

LINK Factory has professional after-sales engineers and a professional engineering team to serve you, from installation to use, to ensure that you can run the machine perfectly.

Future trends of frozen food packaging

(1) Intelligent monitoring

Sensors are used to monitor the sealing performance of packaging, workshop temperature and humidity in real time, and data abnormalities are automatically reported.

(2) Application of environmentally friendly materials

The popularity of degradable packaging films (such as PLA materials) requires equipment to adjust heat sealing temperature and pressure parameters.

(3) Flexible production design

One device is compatible with rapid switching from 100g small packages to 5kg family packages, adapting to the multi-channel needs of small businesses and supermarkets.

Whether it is a traditional quick-frozen enterprise or an emerging pre-prepared food brand, choosing a reliable Frozen Food Packaging Machine is the core of reducing costs and increasing efficiency. It is recommended that enterprises start from actual production capacity and packaging form, plan solutions with professional frozen food packaging machine manufacturers, and verify the stability of the equipment through small-batch trial production, so as to win long-term trust in the fierce market competition.
