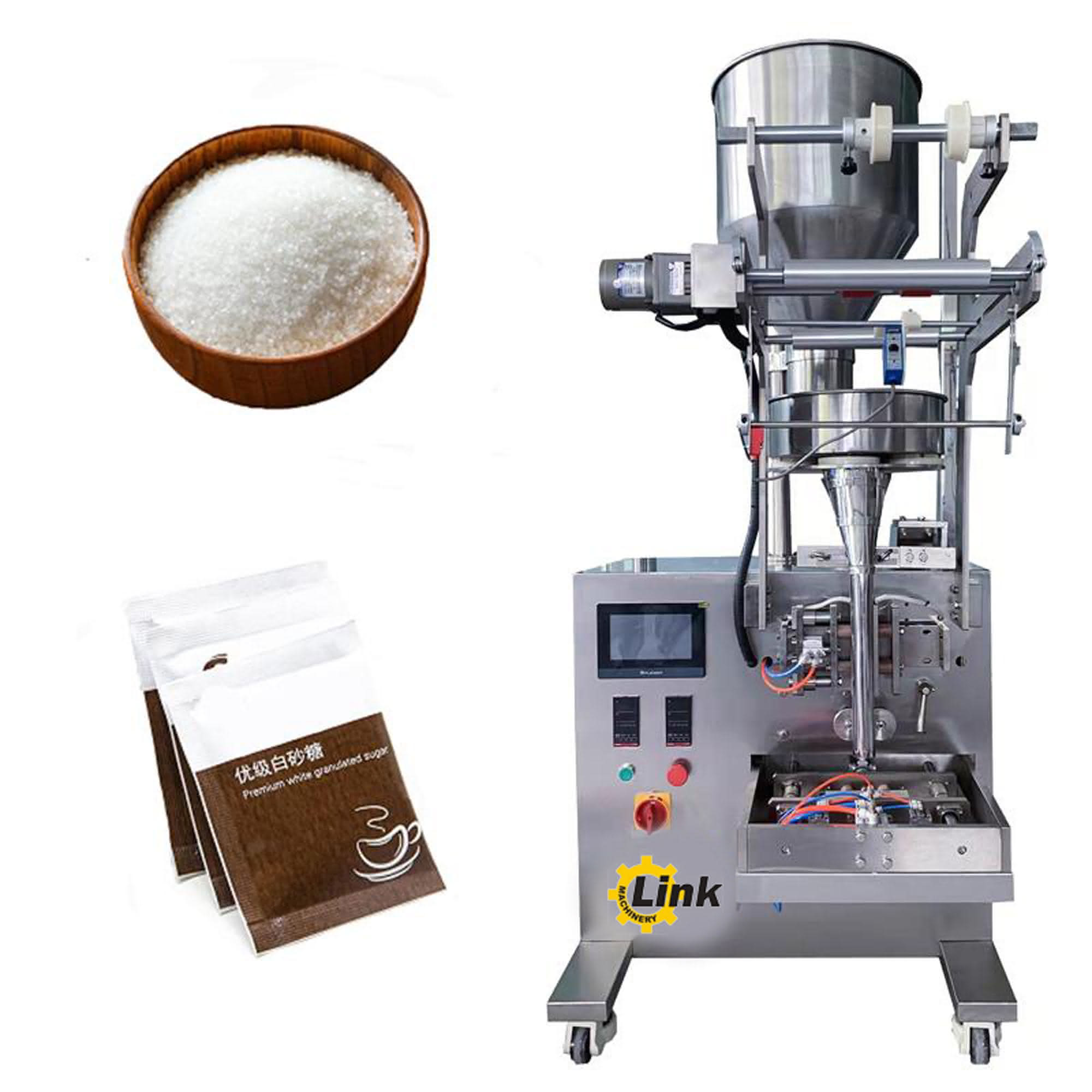

Automatic Rice Salt And Sugar Filling Small Particle Measuring Cup Weighing Packaging Machine

Click the text and leave a message to get a catalog

Application

It's suitable for weighing slice, roll or regular shape products such as sugar, salt, seed, rice, sesame, glutamate, milk powder,

coffee powder and seasoning powder, etc.

Model	Aone-FM-001
Packing bag size mm	Length 30-200 Width 20-150
Packing bag thickness mm	0.04-1
Packing film mm	50-320
Packing range gram	50-300
Packing speed pcs/min	35-60
Power KW	1.5
Size mm	800*1000*1620

Main Features

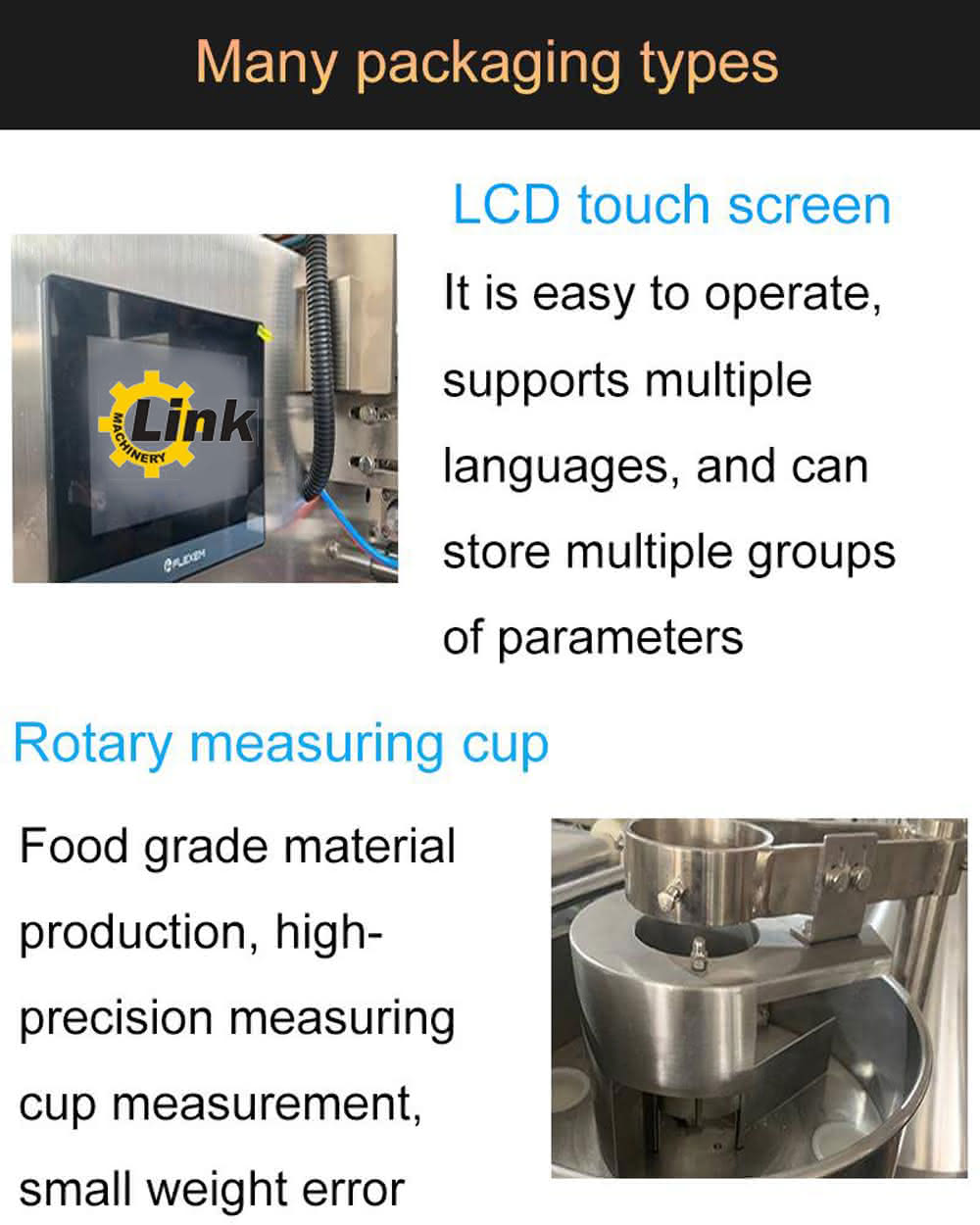

(1) Multi-language operation system can be selected basing on customer's requests.

(2) High precise digital weighing sensor and AD module have been developed.

(3) Multi-drop and succeeding drop methods can be selected to prevent puffed material blocking the hopper.

(4) Material collecting system with function of unqualified product remove, two direction discharge, counting, restore default

setting.

(5) The amplitude of vibrator can be auto-modified for more efficient weighing.

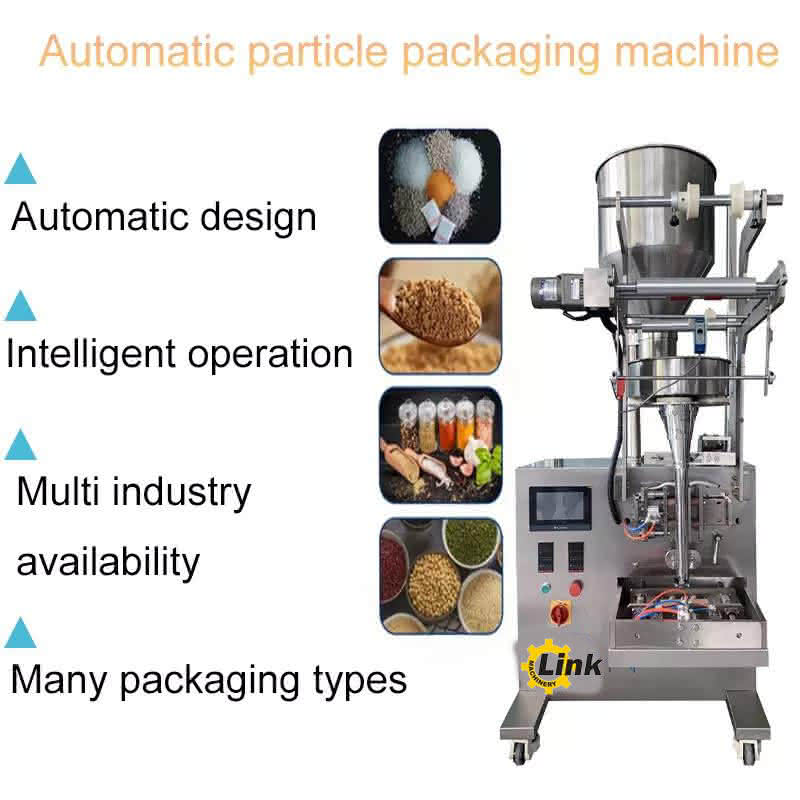

Granule Packing Machine

1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling,

printing,cutting , finished in one operation.

2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt

isresistant to be worn-out.

4. External film releasing mechanism: simpler and easier installation of packing film.

5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .

6. Close down type mechanism , defending powder into inside of machine.
